description：

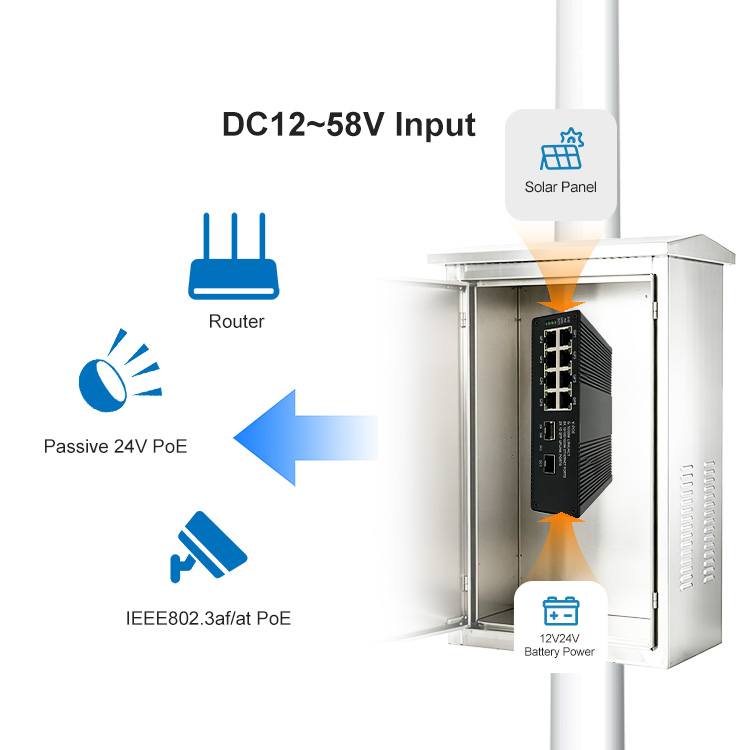

●Support DC12V-58V input and standard IEEE802.3af/at POE output with built-in voltage booster. (Noted: Only Mode B POE output is supported, if your POE Device is Mode A, pls buy POE-Switch0504GDF: ASIN: B0DSN1B4TY)

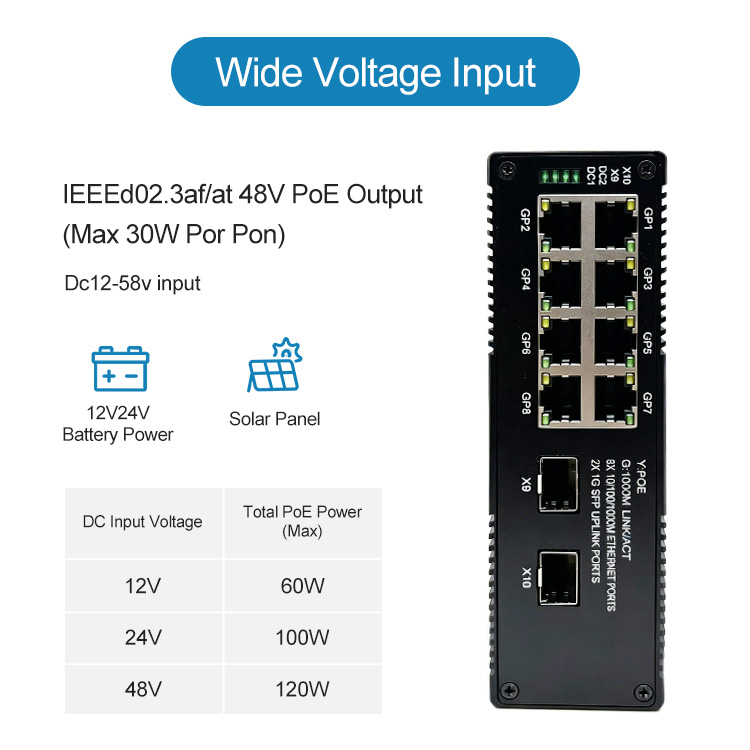

● Provide 8 IEEE802.3af 15W POE ports and 2 Gigabit uplink; All ports 10/100/1000Mbps self-adaptive full duplex; Total POE budget 120W (DC48V input) or 60W (DC12V input).

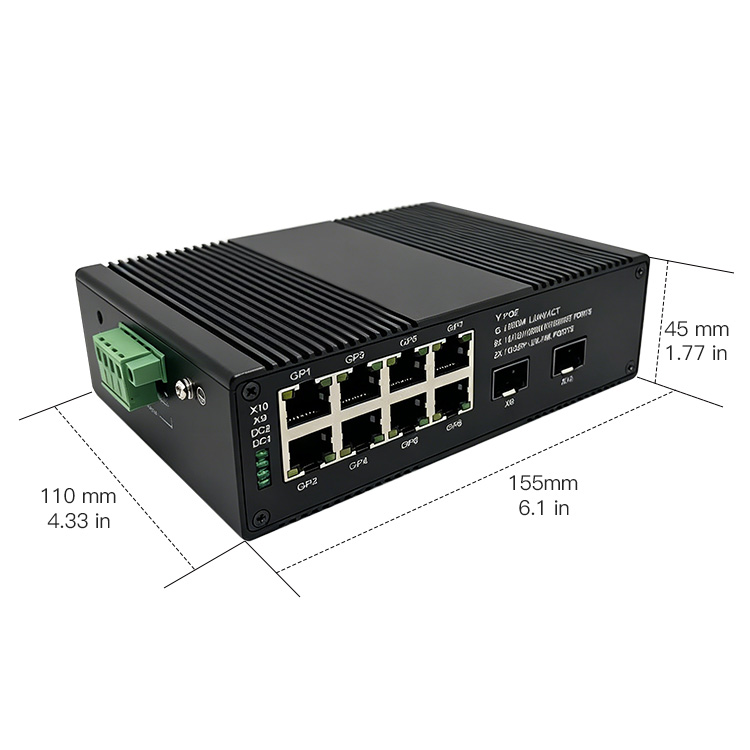

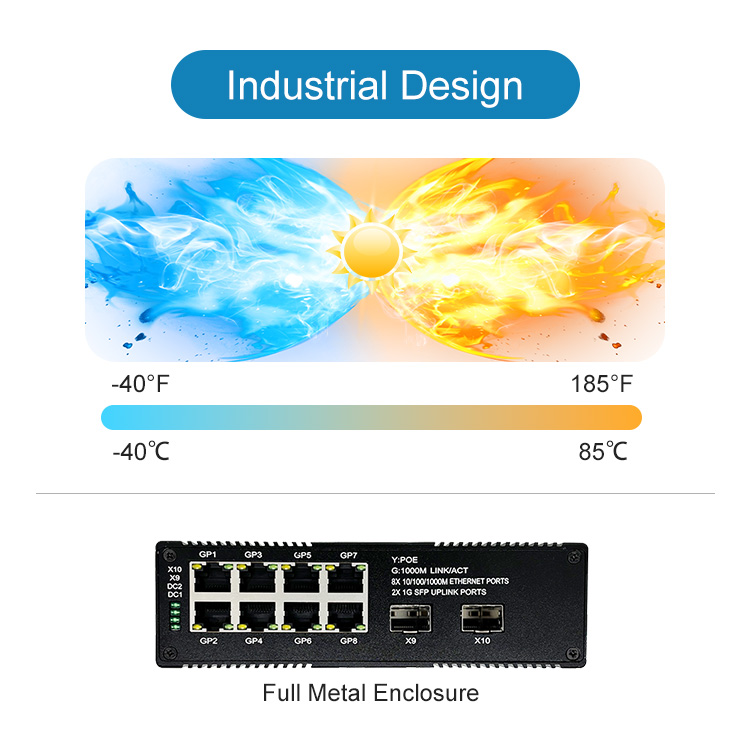

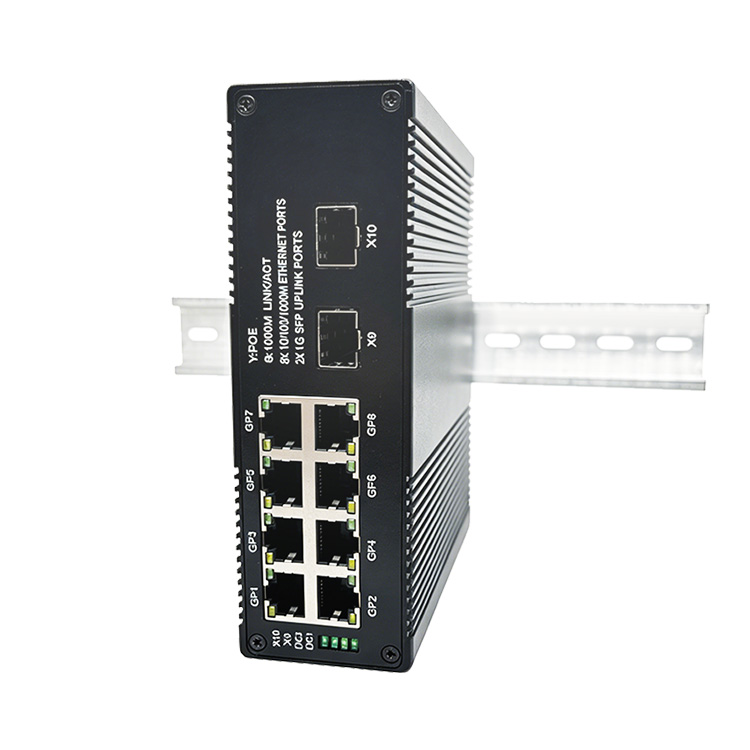

●Compact IP40 rugged metal enclosure; Wide working temperature (-40 ℉ to 185 ℉); Support DIN-Rail & Wall Mount

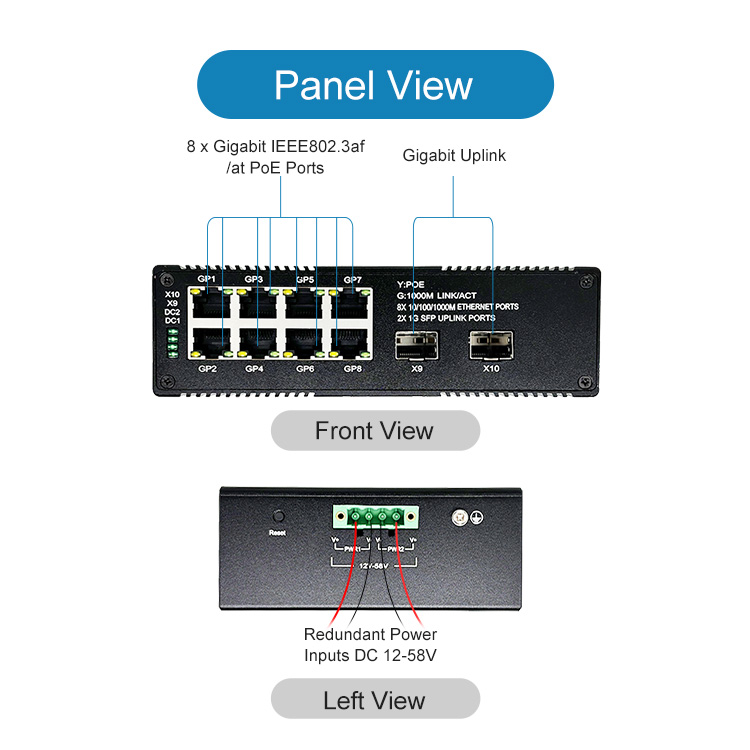

●Support 2 channel DC12V-58V redundant power inputs and auto failover, ensure high reliability networking system.
● The Web network management switch function software newly developed and launched by our company supports a variety of models. Provides VLAN, QoS, RSTP, SNMP, POE control, link aggregation, and more.

PoE Support：802.3af ，802.3at

L2 Switching：Web management Provides VLAN, QoS, RSTP, SNMP, POE control

EMC&INGRESS PROTECTION：IEC 61000-4-5 Level 4（6KV/4KV） IEC 61000-4-2 Level 2（8K/15K）

Transmission distance：20/40/60/80/100/120km

Jumbo Frame：10Kbytes

Ring Protocol：STP/RSTP

Environment：-40℃-85℃
