● Extend your Ethernet connection up to 0~120km away using fiber optics.

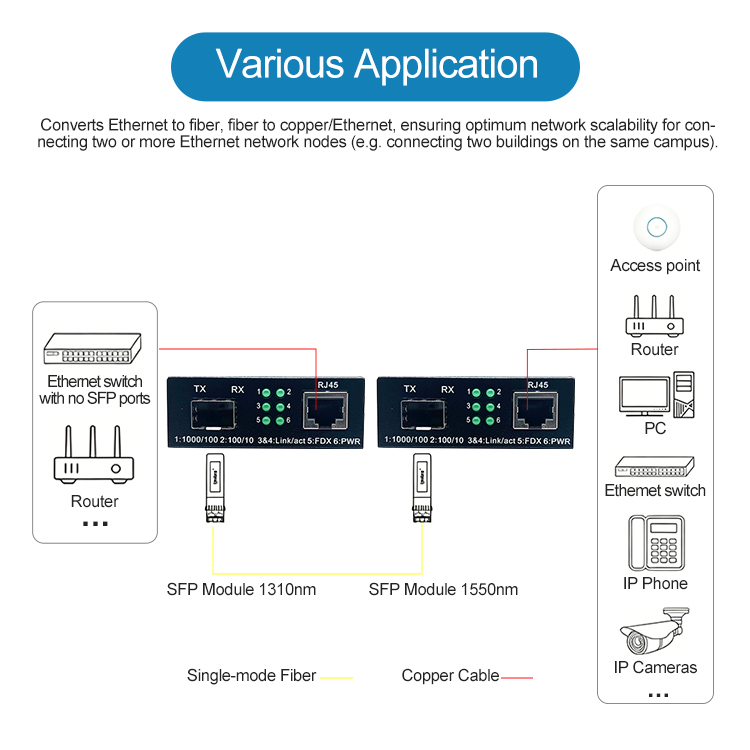

● Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus).
● Bad industrial environment or high requirements for Lightning protection
● Intelligent transportation supervisory system(ITS) and safe cit
● High-speed way supervisory/Tele-communication system, IP network camera
● Security surveillance system for large corporations, multifunction network system
● Long-distance multimedia schooling/ campus surveillance, long-distance broadcast television transmission system

Standard: IEEE802.3 & IEE802.3u, IEEE 802.3z & 802.3ab

Jumbo Frame:9216 Byte

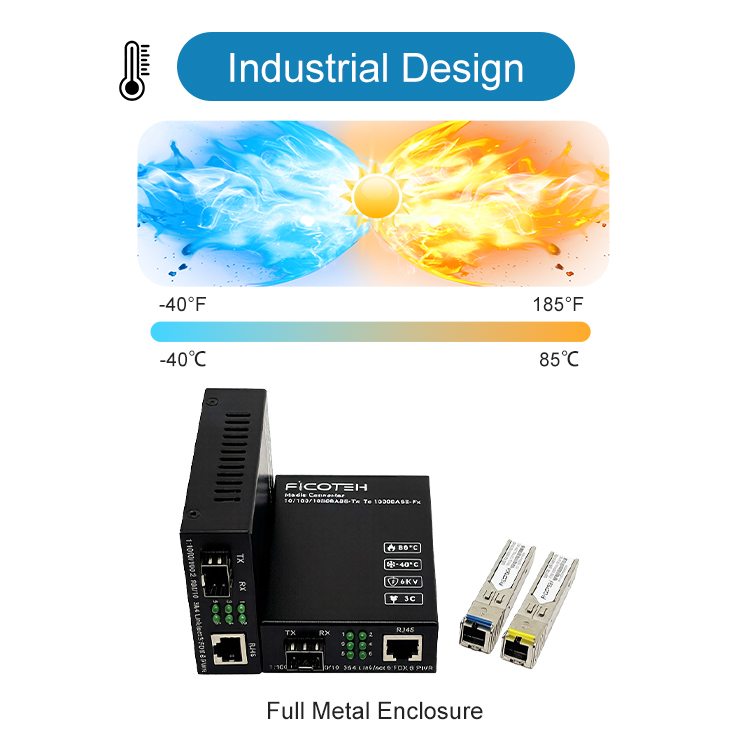

Operation temperature:-40℃-85℃

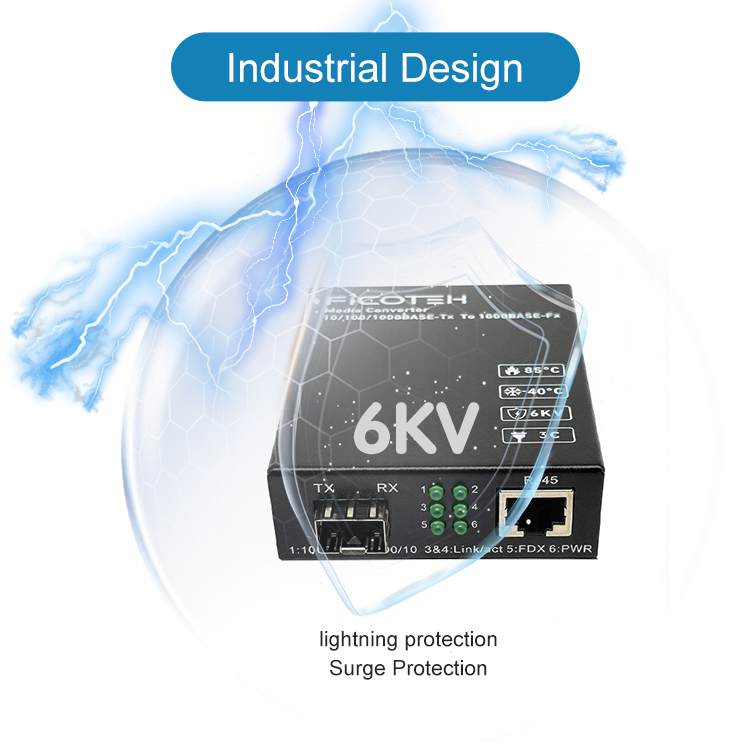

EMC&INGRESS PROTECTION:6kv common mode 4kv differential mode

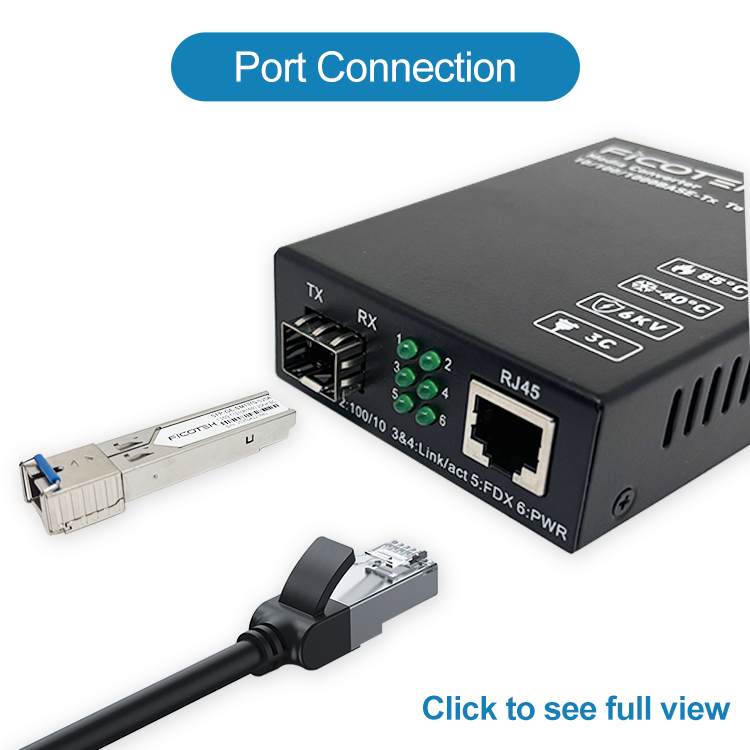

Fiber Port Parameter:Connector:SFP BIDI module SC A:TX1310RX1550nm B:TX1550RX1310nm Distance:20/40/60km

Ethernet Port Parameter:100Base-TX/FX or 1000Base-T RJ45

POWER:DC 5V~12V 1A
